2024 Tacoma (4th Gen) - 5' Foot Bed Measurements - Detailed Dimensions

[andrewleader]

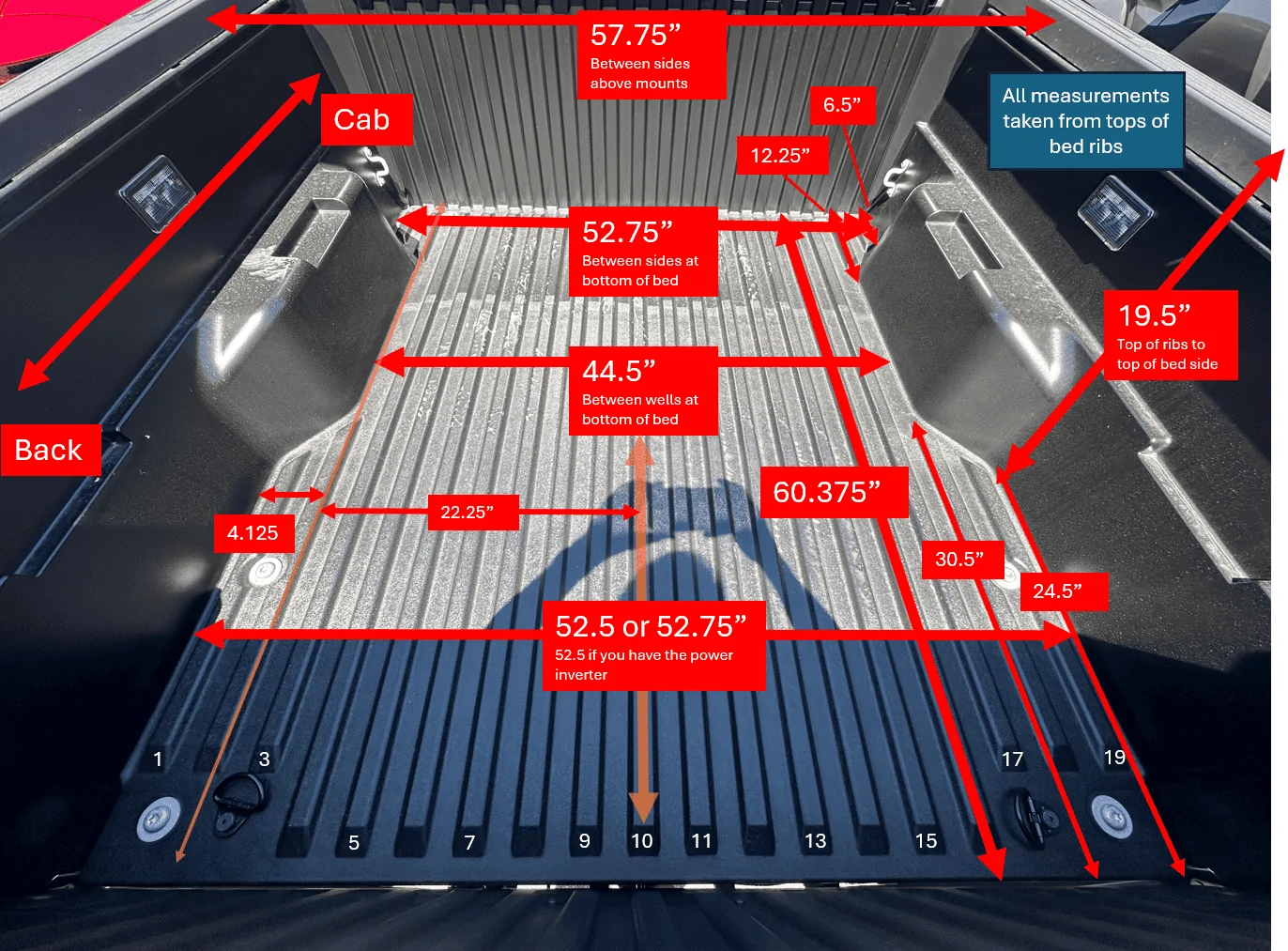

I'm working on a camper build so I took some pretty detailed measurements of the 2024 Tacoma 5' Off-Road bed! Sharing in case it helps someone else!

Sponsored



[stephtaco]

This is awesome, thanks for sharing! I do not have the same model (yet) as yours, but planning to buy one in the future. Good luck with the camper build!



[2ndGen2TrlHntr]

I'm working on a camper build so I took some pretty detailed measurements of the 2024 Tacoma 5' Off-Road bed! Sharing in case it helps someone else!

Solid work on the detail. I just sent this to one of the shops that's doing part of my buildout for my Trailhunter to be (once it arrives after QC hold).



[Ruissimo]

Thank you for this!



[Rope_photo]

This is so helpful. Thank you!
