I couldn't find info about what battery size the new Tacoma's use, so I was at the dealer and snapped some photos!

The stock battery (in the non-hybrids) is "395LN4-MF", it's an 80 Ah battery with 689 CCA. I couldn't find many references to this battery online, my best guess is it's "Group 49" or "Group 48" size? It's definitely not one of the typical normal old sizes.

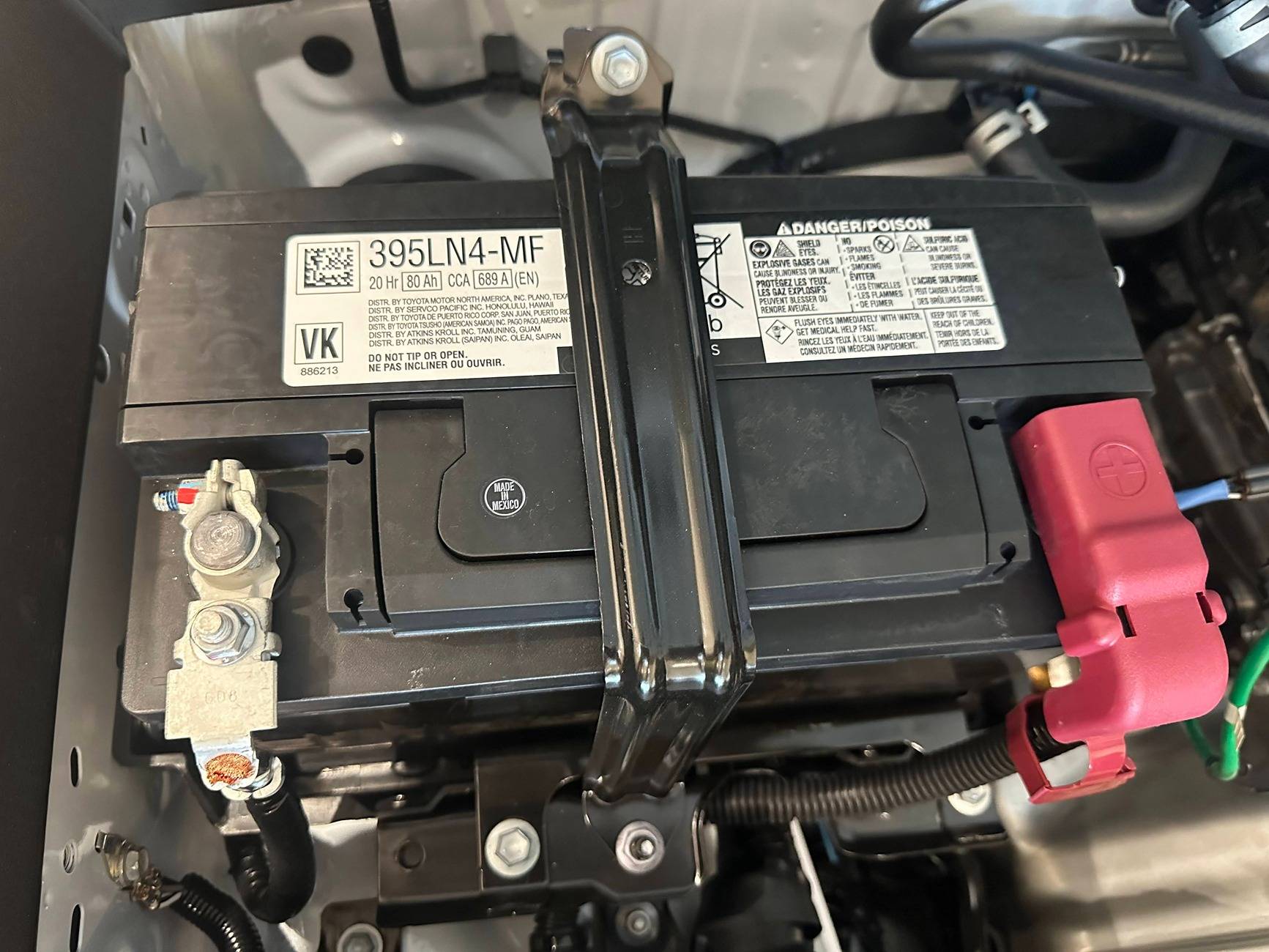

2024 Tacoma 2024 Tacoma Battery Size & Info (non-hybrid): 395LN4-MF, 80 Ah, 689 CCA. + room for second battery IMG_5068

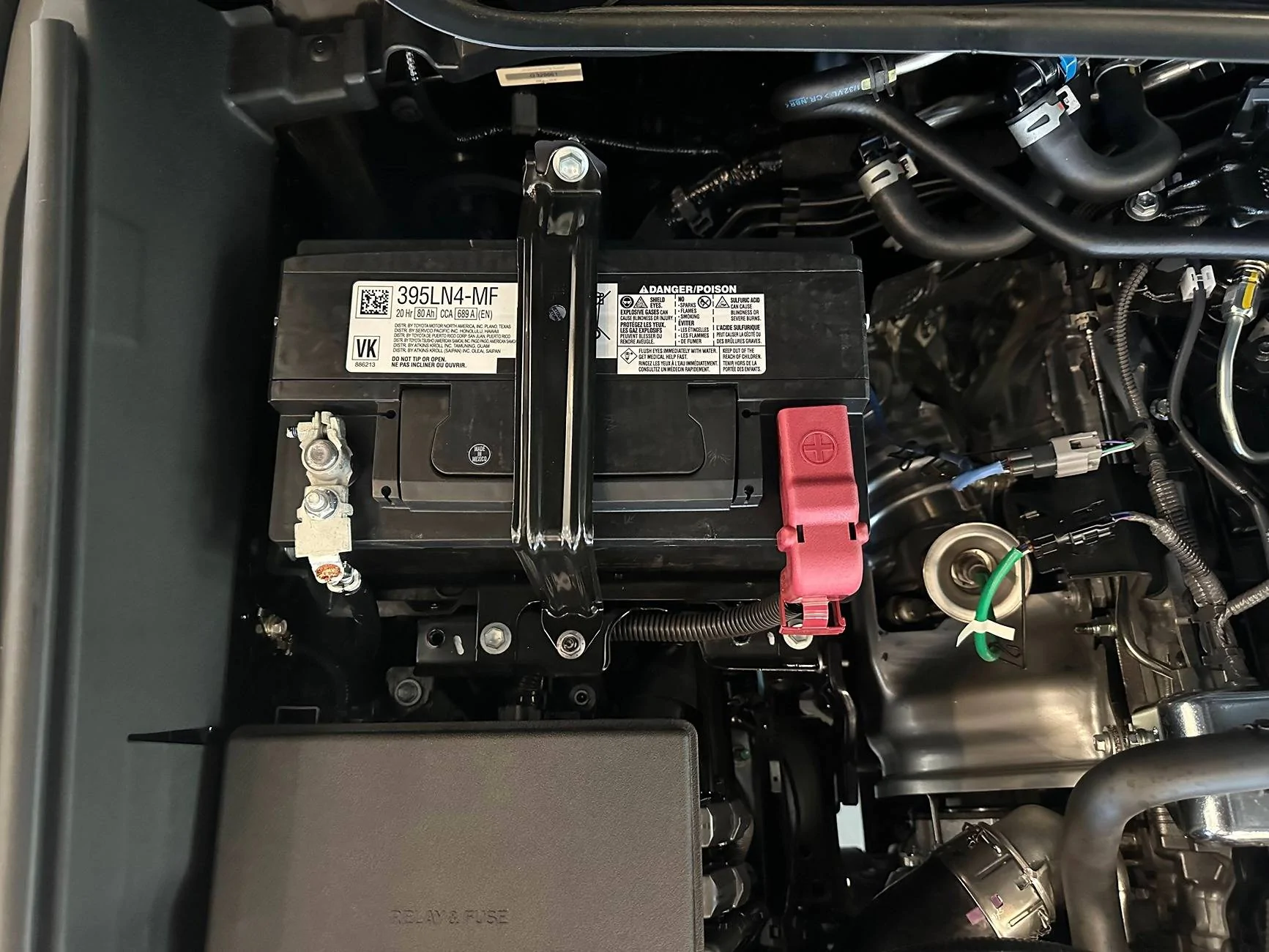

As for mounting a second battery, it seems like there's quite a bit of space to work with. Here's a further back photo. Sounds like there's one or two companies working on a dual battery mount setup that would let you add a Group 24 battery alongside the stock battery.

2024 Tacoma 2024 Tacoma Battery Size & Info (non-hybrid): 395LN4-MF, 80 Ah, 689 CCA. + room for second battery IMG_5104
Sponsored



SnowmanJPS

Well-known member
First Name
Josh
Joined
Feb 11, 2024
Threads
4
Messages
140
Reaction score
132
Location
NS, Canada
Vehicle(s)
2022 Subaru Outback XT (24 Pro on order)
I wonder if it would be possible to mount it 90 degrees from stock and fit another full size battery next to it
