New here.. just came across info with the 2024 TRD Pro and Trailhunter hybrid trailer tow rating and GCWR.

Update: from the 2024 Tacoma Hybrid Owner's Manual --

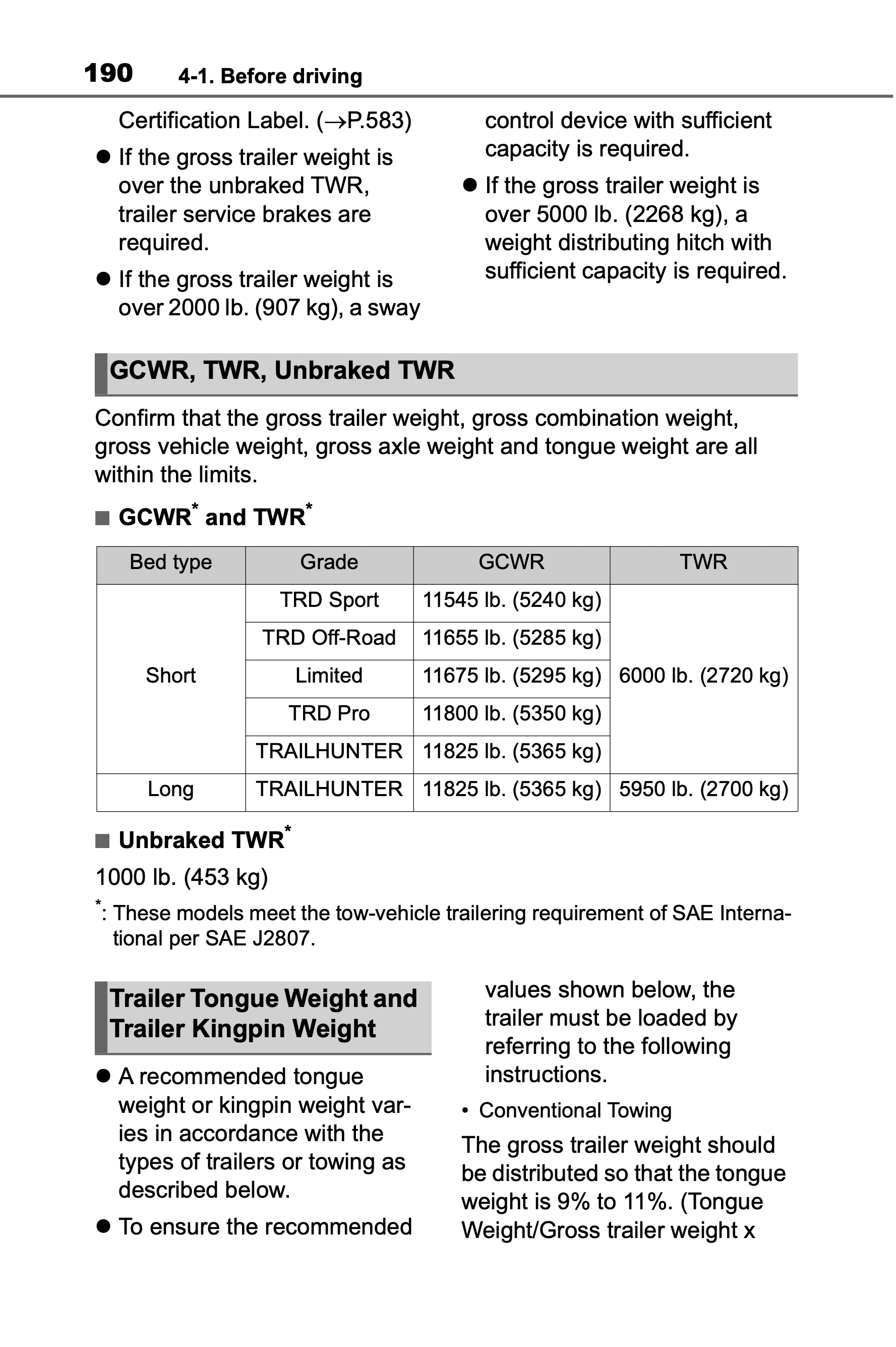

GCWR (Gross Combined Weight Rating):
  • TRD Pro - 11,800 LBS (5,350 KG)
  • Trailhunter (Short Bed) - 11,825 LBS (5,365 KG)
  • Trailhunter (Long Bed) - 11,825 LBS (5,365 KG)

TWR (Max Trailer Weight Rating)
  • TRD Pro - 6,000 LBS (2,720 KG)
  • Trailhunter (Short Bed) - 6,000 LBS (2,720 KG)
  • Trailhunter (Long Bed) - 5,950 LBS (2,700 KG)

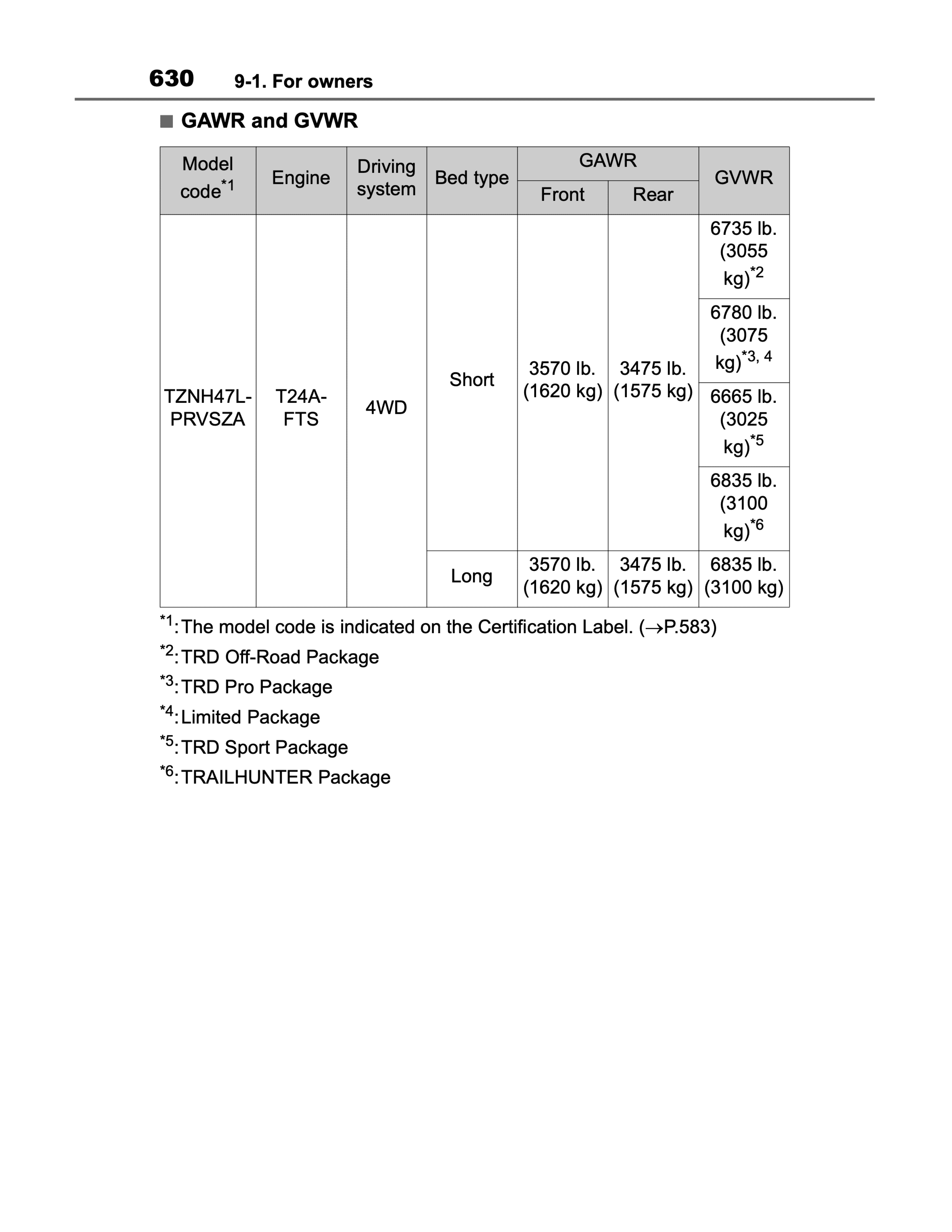

GVWR (Gross Vehicle Weight Rating)
  • TRD Pro - 6780 LBS (3075 KG)
  • Trailhunter (Short Bed) - 6835 LBS (3100 KG)

2024 Tacoma Hybrid 2024 Tacoma TRD Pro & Trailhunter Vehicle Weight & Trailer Towing Rating (GVWR, GCWR, TWR) 2024-tacoma-pro-trailhunter-hybrid-towing-rating-twr


2024 Tacoma Hybrid 2024 Tacoma TRD Pro & Trailhunter Vehicle Weight & Trailer Towing Rating (GVWR, GCWR, TWR) weight-trailhunter-trd-pro-2024-tacoma-gawr-gvwr
Sponsored


Last edited by a moderator:

TacoTime

Well-known member
Joined
Oct 8, 2023
Threads
13
Messages
59
Reaction score
62
Location
PNW
Vehicle(s)
Forester
Interesting. Do you have link to source?

OP
OP

FalonWrap

Member
First Name
Ben
Joined
Apr 6, 2024
Threads
3
Messages
6
Reaction score
13
Location
STL
Vehicle(s)
2024 Tacoma TRDORP
I found out it's from the new owner's manual so it's definitely legit. Will update my post with the screencap of the page.


Sponsored

ForTheWin

Active member
Joined
Feb 13, 2024
Threads
1
Messages
27
Reaction score
33
Location
Arizona
Vehicle(s)
Tacoma
Seems the 6735 lbs weight rating in the Pro and TH build sheets was even slightly lighter than the GVWR in the manual which is showing 6780 lbs for the Pro and 6835 for the TH 5' bed.


Gear_yyc

Well-known member
Joined
May 20, 2023
Threads
7
Messages
283
Reaction score
346
Location
Calgary
Vehicle(s)
2024 Toyota Tacoma TRD Off-Road iForceMAX
Manual indicates TH payload is only 1215lbs (1245 with the 6' bed).

OP
OP

FalonWrap

Member
First Name
Ben
Joined
Apr 6, 2024
Threads
3
Messages
6
Reaction score
13
Location
STL
Vehicle(s)
2024 Tacoma TRDORP

Independence Overland

Well-known member
First Name
Tyler
Joined
Nov 3, 2022
Threads
13
Messages
276
Reaction score
376
Location
Colorado
Vehicle(s)
Fj Cruiser
Even if that payload is correct for the Trailhunter, remember it has steel sliders, a steel bumper, steel skid plates.

Typically we start a build with that kind of payload before we put any of that on


Nick_H

New member
First Name
Nick
Joined
Jan 3, 2024
Threads
0
Messages
3
Reaction score
6
Location
2024TRDPROTexas
Vehicle(s)
2017 TRD Off Road Tacoma, 2020 Subaru Ascent
The fuel tanks on the Hybrid Trucks are the same size as nonhybrid, so they will actually have a larger range since they are hybrids.
